CS12F9 5 inch IP69K Waterproof Car Digital Wireless Rear-view Monitor, Support Dual-channel Recording / Online Playback

1. 5-inch display, 500CD/square meter brightness, resolution: 800×480, support dual-channel recording and online playback
2. IP69K waterproof
3. 16DBM transmit power, receive sensitivity -90DBM
4. 12-36V supply voltage
5. 160-degree wide-angle camera, 720P pixels

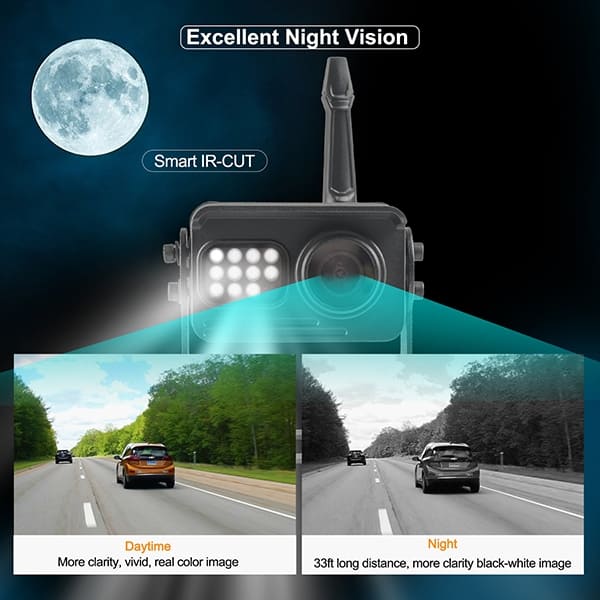

6. Super night vision, 11 infrared lights, 10M range, support RI-CUT
7. Display parameters:
– LCD size: 5 inches
– Resolution: 800×3(RGB)x480
– Brightness: 500 CD/square meter
– TV system: PAL/NTSC
– Transmission power: 24+/-1dBm max
– Operating frequency: 2.4GHz-2.4835GHz
– RX Sensitivity: -85dBm@10%PER
– Spread Spectrum: FHSS
– Video compression: H.264
– Latency: 160ms
– Transmission distance: 984ft
– Power supply: DC12-24V
– TF card: 128g max (not included)
– Operating temperature: -20~70 degrees Celsius
– Storage temperature: -30~80 degrees Celsius
– Dimensions: 132.5×89.5×22.5mm

8. Camera (FX922) parameters:
– Sensor: 1/2.7 inch COMS HD
– Angle: 160 degrees
– Operating frequency: 2.4GHz-2.4835GHz
– Transmission distance: 300m
– Transmission power: 23dB
– Latency: less than 200ms
– RF bit rate: 12Mbps
– Lumen: 0Lux min.
– Night vision distance: 4-5m
– Power supply: DC10-18V
– Waterproof grade: IP69K
– Operating temperature: -20~70 degrees Celsius
– Storage temperature: -30~80 degrees Celsius
– Dimensions: 85x28x25.5mm
9. Camera (FX909) parameters:
– Operating frequency: 2.4GHz-2.4835GHz
– Power supply: DC12-32V
– Power: 150mA/12V
– Latency: less than 200ms
– Picture sensor: 1/2.7 inch HD
– Angle: 120 degrees
– IR Control: Built-in IR-CUT
– Waterproof grade: IP69K
– Operating temperature: -40~70 degrees Celsius
– Storage temperature: -40~80 degrees Celsius
– Dimensions: 78x64x50mm
