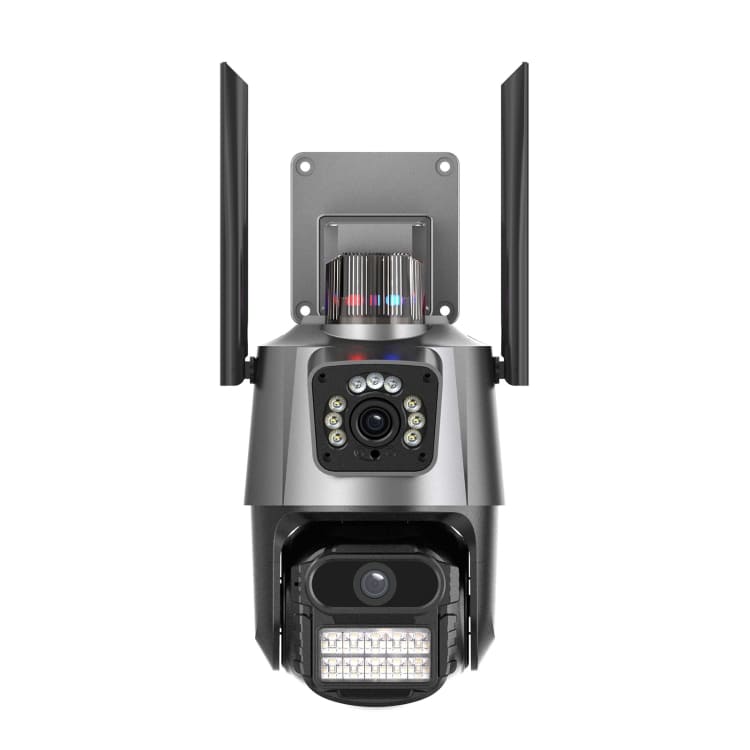

QX81 Humanoid Recognition AI Alarm WIFI Spherical Dual 2MP IP Camera, Plug:US Plug

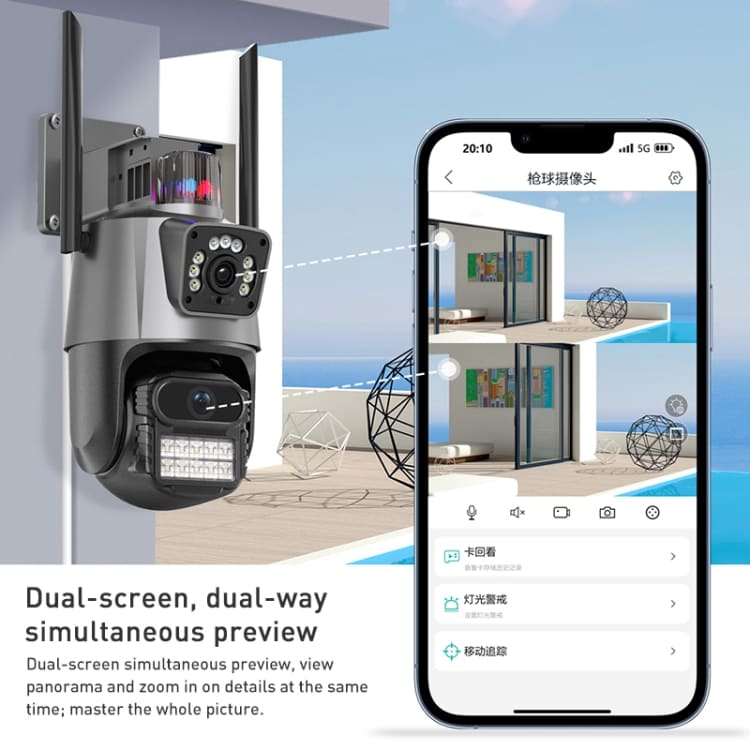

1. 2MP bullet type + 2MP spherical machines, the image is spliced up and down into 4 million, and the image is clear and exquisite;
2. Support human shape detection, tracking and capturing;
3. Support dual light, human shape and intelligence (line mixing, area care, etc.);
4. Support wired and wireless network connection;
5. Support 2D/3D noise reduction and digital wide dynamic;
6. Advanced H.265 AI video compression technology, ultra-low bit rate, high-definition image quality;
7. Lightning protection, in accordance with international standard IEC61000-4-5;
8. Support ONVIF protocol and access to third-party backend/platform;
9. Support mobile phone monitoring (iOS, Android);
10. Support a variety of cloud technologies to achieve network penetration, front-end and back-end docking, and push alarm information to mobile phones and other functions
1. CPU: Dual core 32-bit DSP XM650V200
2. Sensors: 2pcs 2MP 1/2.8″ SC233A CMOS
3. Minimum illumination: Color: 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR; Black and white: 0.001 Lux @ (F1.2, AGC ON), 0 Lux with IR
4. Shutter: 1/50 (1/60) seconds to 1/10000 seconds
5. Focal length: F1.4 x 3.6mm + F1.4 x 6mm
6. Video format: H.265AI
7. Resolution: Main resolution: 1920×2160; Sub resolution: 800×896
8. Frame rate: 12 fps
9. Light source: 11 infrared+12 white light
10. Lighting mode: Starlight full color/infrared night vision/dual light alert
11. Support for human shape detection, tracking, bidirectional voice, cloud storage, and one click recovery
12. Support protocol: NETIP protocol, support onvif protocol
13. Network interface: 10M/100M adaptive Ethernet port
14. Local storage interface: TF card maximum 256GB (not included)
15. Wireless standard: IEEE802.11b/g/n
16. Frequency range: 2.4GHz -2.4835GHz
17. Power supply: DC 12V, power consumption: 10W
18. Product size: 120x148x217mm
19. Net weight of product: 0.58kg
Model QX81
Power Depletion 10W
Power Supply DC 12V 2.0A
View Angle 70 degree / 92 degree
Online Visitor (Max.) 5
System / Hardware
Sensor SC233A
Image Sensor CMOS
Processor XM650V200
Lens 3.6mm6.0mm
Pan/Tilt-Horizontal Angle 270 degree
Pan/Tilt-Vertical Angle 90 degree
Physical Environment
Ingress Protection IP65
Size 120x148x217mm
Weight 0.58kg
Package Weight
One Package Weight 0.87kgs / 1.93lb
One Package Size 22cm * 13cm * 22.3cm / 8.66inch * 5.12inch * 8.78inch
Qty per Carton 24
Carton Weight 23.00kgs / 50.71lb
Carton Size 68cm * 47cm * 55cm / 26.77inch * 18.5inch * 21.65inch
Loading Container 20GP: 151 cartons * 24 pcs = 3624 pcs
40HQ: 352 cartons * 24 pcs = 8448 pcs
