Features
1. 1/2.5 inch Megapixel CMOS Sensor, high resolution 2MP
2. Manual focus 4-9mm, 4mm-8mm. 3.0 Megapixels lens optional, IR distance 30m
3. Support IR CUT dual OLP Switching, monitored day and night to achieve. Minimum illumination up 0 LUX (IR ON)
4. High performance H.264 compression technology, processing and flexible, high compression ratio 30FPS (1920*1080P 30FPS). Real time transmission up to 30FPS
5. Dual stream network transmission, for a variety of network environments
6. Support Optional: Two-way audio supported
7. 1080P (High resolution 2MP), 2MP: 1920*1080, 720P: 1280*720
8. Illumination up 0 LUX (IR ON)
9. Support IR CUT dual OLP Switching, monitored day and night to achieve
10. Support mobile phone monitoring (compatible iPhone / Android) P2P
11. Onvif 2.1 compliant, support for multiple NVR
12. DC 12V/1A
13. Support Optional: 1 USB port (optional WIFI/3G)
14. DC 12V or Power over Ethernet (Support Optional: IEEE 802.3af)
Specification

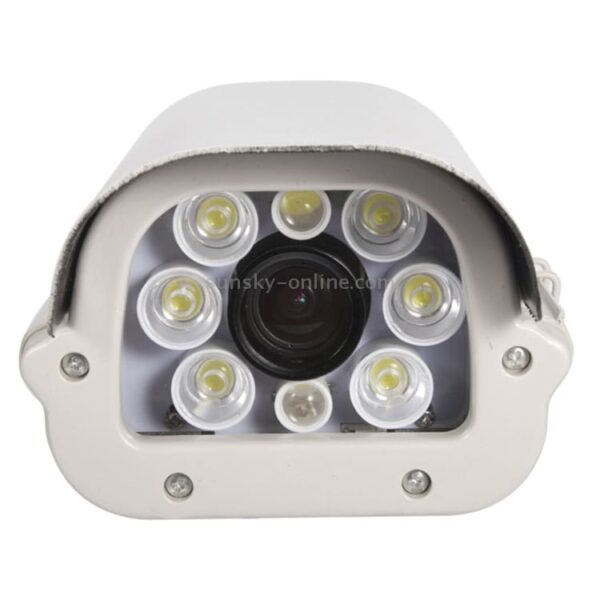

1. Model: TV-821H2/IP-LP
2. System structure:
– Embedded RTOS design (HI3518), dual-core 32-bit DSP
– Pure hardware compression, watchdog, 16M FLASH, 128M DDR3
3. Sensor: 2 Megapixel 1/2.5 inch CMOS, color 1.0 lux F1.2, black and white 0.01 lux F1.2, support day and night switch
4. Manual focus4-9mm, 4mm-8mm 3.0 Megapixels lens optional
5. Video processing: H.264 video coding; support dual-stream
6. AVI format; support adjustable stream 0.1M~6Mpbs
7. IR distance: 8 x LED Array, IR distance 30m
8. 2.0 Megapixel 30 frame(full-time), support to adjust 1~30 frame rate
9. Video output:
– Main stream: 1920×1080, 1280×960
– Sub stream: 640×360, 480×270, 320×180
10. Network interface:
– 1 x RJ45 Ethernet interface, 10/100M self-adaptation and can resist 6kv static electricity
– Support the network protocols which is RTSP / FTP/ PPPOE/ DHCP/ DDNS / NTP/ UPnP etc
11. Business functions:
– Support WEB configuration, real-time video transmission, motion detection and IO alarm linkage end storage, front storage playback/ download
– Motion detection and IO alarm center remind and screen pop-up linkage, unified client remote monitoring software (UC2) and VM3000 platform etc. system, phone monitoring (iPhone, Android), through service “through clouds” and provide complete development kit SDK
12. Power supply: DC12V/1A, Power: 5W
